Qt Quick Item as Texture Example

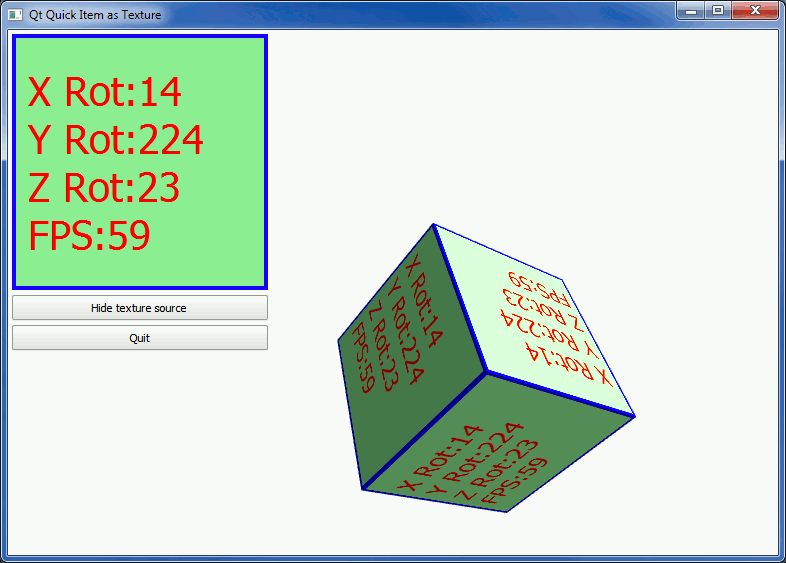

A simple cube with a Qt Quick item as a texture.

The Qt Quick Item as Texture example shows how to use other Qt Quick items as a texture source for Qt Canvas3D textures.

Using Qt Quick Item as a Texture

First we create a Rectangle with a label that displays the current frame rate and rotation values of the cube:


  Rectangle {
      id: textureSource
      color: "lightgreen"
      width: 256
      height: 256
      border.color: "blue"
      border.width: 4
      layer.enabled: true
      layer.smooth: true
      Label {
          anchors.fill: parent
          anchors.margins: 16
          text: "X Rot:" + (canvas3d.xRotAnim | 0) + "\n"
              + "Y Rot:" + (canvas3d.yRotAnim | 0) + "\n"
              + "Z Rot:" + (canvas3d.zRotAnim | 0) + "\n"
              + "FPS:" + canvas3d.fps
          color: "red"
          font.pointSize: 26
          horizontalAlignment: Text.AlignLeft
          verticalAlignment: Text.AlignVCenter
      }
  }

We want to use the above Rectangle as the texture on our 3D cube. As a Rectangle item doesn't implement QQuickItem::textureProvider() by itself, we make it layered by setting the layer.enabled property to true.

To create a Canvas3DTexture out of our layered Rectangle, we create a QTCANVAS3D_texture_provider extension and the texture in the initializeGL() function in our JavaScript implementation:


  canvasTextureProvider = gl.getExtension("QTCANVAS3D_texture_provider");
  cubeTexture = canvasTextureProvider.createTextureFromSource(textureSourceItem);

Once the cubeTexture item is created, it can be used like any other texture item in the JavaScript.

Note: The method of creating the texture from a Qt Quick item differs from how one would create texture from an HTML item in WebGL API. Textures created with QTCANVAS3D_texture_provider extension support automatic live updates, without having to call textureImage2D each frame to re-upload fresh texture data from the item.
