Qml Weather

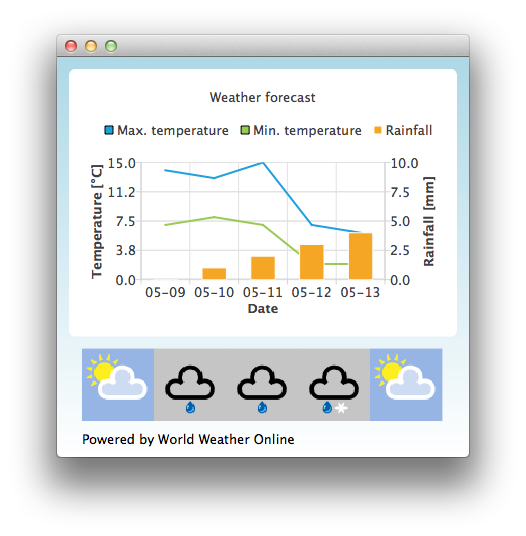

This is a basic demonstration showing how to use the different chart types by using qml.

By default the application uses static test data to mimic a weather forecast. You can also obtain an application id from http://www.worldweatheronline.com/ to get access to weather API provided by World Weather Online. You can then give your application id as a parameter to the Qml Weather executable to make it use live data.

For example:


  bin\qmlweather.exe 1234567890abcdef123456

Running the Example

To run the example from Qt Creator, open the Welcome mode and select the example from Examples. For more information, visit Building and Running an Example.

Using Charts in Qt Quick Applications

The example application uses a ChartView and a some series to visualize weather data:


  ChartView {
      id: chartView
      title: "Weather forecast"
      BarCategoryAxis {
          id: barCategoriesAxis
          titleText: "Date"
      }

      ValueAxis{
          id: valueAxisY2
          min: 0
          max: 10
          titleText: "Rainfall [mm]"
      }

      ValueAxis {
          id: valueAxisX
          // Hide the value axis; it is only used to map the line series to bar categories axis
          visible: false
          min: 0
          max: 5
      }

      ValueAxis{
          id: valueAxisY
          min: 0
          max: 15
          titleText: "Temperature [°C]"
      }

      LineSeries {
          id: maxTempSeries
          axisX: valueAxisX
          axisY: valueAxisY
          name: "Max. temperature"
      }

      LineSeries {
          id: minTempSeries
          axisX: valueAxisX
          axisY: valueAxisY
          name: "Min. temperature"
      }

      BarSeries {
          id: myBarSeries
          axisX: barCategoriesAxis
          axisYRight: valueAxisY2
          BarSet {
              id: rainfallSet
              label: "Rainfall"
          }
      }

To get data with weather forecast data, we make an HTTP GET request to World Weather Online. We request the response in JSON data format.


  // Make HTTP GET request and parse the result
  var xhr = new XMLHttpRequest;
  xhr.open("GET",
           "http://free.worldweatheronline.com/feed/weather.ashx?q=Jyv%c3%a4skyl%c3%a4,Finland&format=json&num_of_days=5&key="
           + weatherAppKey);
  xhr.onreadystatechange = function() {
      if (xhr.readyState == XMLHttpRequest.DONE) {
          var a = JSON.parse(xhr.responseText);
          parseWeatherData(a);
      }
  }
  xhr.send();

The JSON response contains an array of forecast data:


  // Loop through the parsed JSON
  for (var i in weatherData.data.weather) {
      var weatherObj = weatherData.data.weather[i];

That is then used as input data for our series and a ListModel we use as a container for weather icon URLs:


  // Store temperature values, rainfall and weather icon.
  // The temperature values begin from 0.5 instead of 0.0 to make the start from the
  // middle of the rainfall bars. This makes the temperature lines visually better
  // synchronized with the rainfall bars.
  maxTempSeries.append(Number(i) + 0.5, weatherObj.tempMaxC);
  minTempSeries.append(Number(i) + 0.5, weatherObj.tempMinC);
  rainfallSet.append(i, weatherObj.precipMM);
  weatherImageModel.append({"imageSource":weatherObj.weatherIconUrl[0].value});
