Qt Quick Controls - Table View Example

An example for the TableView control.

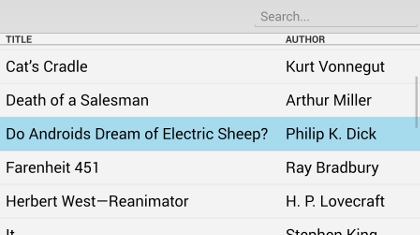

This example project demonstrates the usage of TableView from Qt Quick Controls - a control to display one or more columns of information from a data list model. The example includes a model that supports sorting and filtering.

The C++ class, SortFilterProxyModel, is registered as a QML type under the namespace, "org.qtproject.example 1.0".

The following snippets show how the type is registered under a namespace and later imported by main.qml.

QML type registration:


  #include <QtQml/qqml.h>
  ...
  qmlRegisterType<SortFilterProxyModel>("org.qtproject.example", 1, 0, "SortFilterProxyModel");
  ...

QML namespace import:


  import org.qtproject.example 1.0

For more information about registering C++ classes as QML types, see Defining QML Types from C++.

Running the Example

To run the example from Qt Creator, open the Welcome mode and select the example from Examples. For more information, visit Building and Running an Example.

Files:
