Qt Quick Controls - Text Editor Example

A QML app using Qt Quick Controls and a C++ class to provide a fully-functional rich-text editor application.

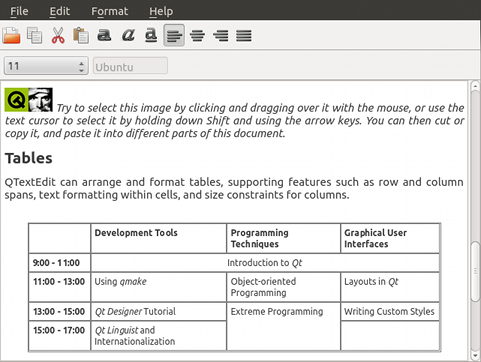

The Text Editor Example presents a sample HTML file using the TextArea control, preserving the HTML formatting. It uses a C++ class to handle the document by providing options to open, format, and edit. The app also lets you open and edit a plain text files.

The C++ class, DocumentHandler, extends QObject and is registered as a QML type under the namespace, "org.qtproject.example 1.0".

The following snippets show how the type is registered under a namespace and later imported by main.qml.

QML type registration:


  #include <QtQml/qqml.h>
  ...
  qmlRegisterType<DocumentHandler>("org.qtproject.example", 1, 0, "DocumentHandler");
  ...

QML namespace import:


  import org.qtproject.example 1.0

For more information about registering C++ classes as QML types, see Defining QML Types from C++.

Running the Example

To run the example from Qt Creator, open the Welcome mode and select the example from Examples. For more information, visit Building and Running an Example.

Files:

Images:
