Qt Quick Controls 2 - Swipe to Remove

Demonstrates removal of list items by swipe gesture.

This example demonstrates how SwipeDelegate can be used to implement removal of list items by swiping. This UI pattern is often used in touch user interfaces.

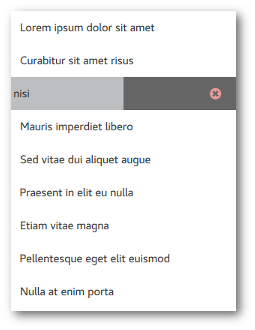

Each list item can be swiped to the left, which reveals a label on the right side indicating that the item will be removed if the swipe is completed. The following snippet contains the implementation of the side item.


  swipe.right: Rectangle {
      width: parent.width
      height: parent.height

      clip: true
      color: SwipeDelegate.pressed ? "#555" : "#666"

      Label {
          font.family: "Fontello"
          text: delegate.swipe.complete ? "\ue805" // icon-cw-circled
                                        : "\ue801" // icon-cancel-circled-1

          padding: 20
          anchors.fill: parent
          horizontalAlignment: Qt.AlignRight
          verticalAlignment: Qt.AlignVCenter

          opacity: 2 * -delegate.swipe.position

          color: Material.color(delegate.swipe.complete ? Material.Green : Material.Red, Material.Shade200)
          Behavior on color { ColorAnimation { } }
      }

      Label {
          text: qsTr("Removed")
          color: "white"

          padding: 20
          anchors.fill: parent
          horizontalAlignment: Qt.AlignLeft
          verticalAlignment: Qt.AlignVCenter

          opacity: delegate.swipe.complete ? 1 : 0
          Behavior on opacity { NumberAnimation { } }
      }

      SwipeDelegate.onClicked: delegate.swipe.close()
      SwipeDelegate.onPressedChanged: undoTimer.stop()
  }

The following snippet presents how the logic of removing items is implemented. When the swipe is completed, it starts a timer that waits a few seconds to let the user undo the remove action. Once the undo timer triggers, the item is removed from the list:


  Timer {
      id: undoTimer
      interval: 3600
      onTriggered: listModel.remove(index)
  }

  swipe.onCompleted: undoTimer.start()

Finally, the removal of an item triggers the following transitions. The remove transition applies to the item that is removed, and the displaced transition applies to the other items that got displaced due to the removal:


  remove: Transition {
      SequentialAnimation {
          PauseAnimation { duration: 125 }
          NumberAnimation { property: "height"; to: 0; easing.type: Easing.InOutQuad }
      }
  }

  displaced: Transition {
      SequentialAnimation {
          PauseAnimation { duration: 125 }
          NumberAnimation { property: "y"; easing.type: Easing.InOutQuad }
      }
  }

Running the Example

To run the example from Qt Creator, open the Welcome mode and select the example from Examples. For more information, visit Building and Running an Example.
