Simple Anchor Layout Example

Demonstrates anchor layout on a graphics view scene.

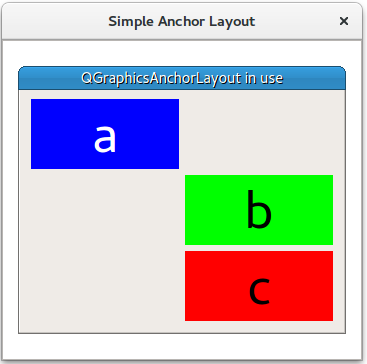

The Simple Anchor Layout example shows the basic use of the QGraphicsAnchorLayout class.

The example starts by creating a QGraphicsScene (scene), 3 widgets (a, b, and c), and a QGraphicsAnchorlayout (layout).


      QGraphicsScene *scene = new QGraphicsScene();

      Widget *a = new Widget(Qt::blue, Qt::white, "a");
      a->setPreferredSize(100, 100);
      Widget *b = new Widget(Qt::green, Qt::black, "b");
      b->setPreferredSize(100, 100);
      Widget *c = new Widget(Qt::red, Qt::black, "c");
      c->setPreferredSize(100, 100);

      QGraphicsAnchorLayout *layout = new QGraphicsAnchorLayout();

First it anchors the top left corner of item a to the top left corner of layout. This can be done in two steps:


      layout->addAnchor(a, Qt::AnchorTop, layout, Qt::AnchorTop);
      layout->addAnchor(a, Qt::AnchorLeft, layout, Qt::AnchorLeft);

Or in one step:


      layout->addCornerAnchors(a, Qt::TopLeftCorner, layout, Qt::TopLeftCorner);

Then the right anchor of a is anchored to the left anchor of b, and the top of item b is anchored to the bottom of a.


      layout->addAnchor(b, Qt::AnchorLeft, a, Qt::AnchorRight);
      layout->addAnchor(b, Qt::AnchorTop, a, Qt::AnchorBottom);

Place a third widget c under widget b:


      layout->addAnchor(b, Qt::AnchorBottom, c, Qt::AnchorTop);

Items b and c are anchored to each other horizontally:


      layout->addAnchors(b, c, Qt::Horizontal);

Item c is anchored to the bottom right point of layout


      layout->addCornerAnchors(c, Qt::BottomRightCorner, layout, Qt::BottomRightCorner);

Finally, QGraphicsWidget w is displayed in QGraphicsView view.


      QGraphicsWidget *w = new QGraphicsWidget(0, Qt::Window | Qt::CustomizeWindowHint | Qt::WindowTitleHint);
      w->setPos(20, 20);
      w->setMinimumSize(100, 100);
      w->setPreferredSize(320, 240);
      w->setLayout(layout);
      w->setWindowTitle(QApplication::translate("simpleanchorlayout", "QGraphicsAnchorLayout in use"));
      scene->addItem(w);

      QGraphicsView *view = new QGraphicsView();
      view->setScene(scene);
      view->setWindowTitle(QApplication::translate("simpleanchorlayout", "Simple Anchor Layout"));

      view->resize(360, 320);
      view->show();

      return app.exec();

Files:

See also Anchor Layout Example.
