Quick Player

Demonstrates using QtWinExtras in Qt Quick.

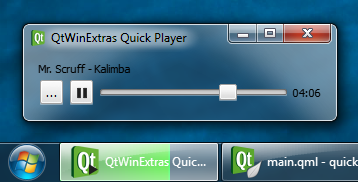

Screenshot of the Quick Player example

The Quick Player example demonstrates how to use the various features provided by the QtWinExtras module in Qt Quick.

Note: This example is a simplified Qt Quick-based version of the Music Player example.

DWM Features

The example uses Windows DWM (Desktop Window Manager) features to visually integrate the window content to the window frame and to make the window translucent and blurred.

The example applies a different look based on whether composition is enabled or not. When composition is enabled, the window is made translucent and the window frame is extended to the client area to make the window content integrate seamlessly to the window frame as shown above.


  Win.DwmFeatures {
      id: dwm

      topGlassMargin: -1
      leftGlassMargin: -1
      rightGlassMargin: -1
      bottomGlassMargin: -1
  }

When composition is disabled, the colorization color is used as a background color for the window.


  color: dwm.compositionEnabled ? "transparent" : dwm.realColorizationColor

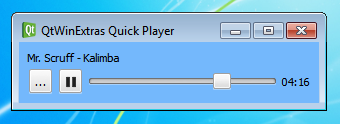

The following screenshot illustrates how the Quick Player example looks when composition is disabled.

Screenshot of the Quick Player example

Taskbar Overlay and Progress

The example uses Windows Taskbar for two things; it sets an overlay icon that represents the current music playback state, and it indicates the playback progress in the taskbar button.

Screenshot of the Quick Player taskbar

The following snippet shows how the taskbar button is prepared. The taskbar progress indicator and the overlay icon are bound to the music playback, and will automatically change whenever the state or attributes of the music playback change.


  Win.TaskbarButton {
      id: taskbar

      progress.value: mediaPlayer.position
      progress.maximum: mediaPlayer.duration
      progress.visible: mediaPlayer.hasAudio
      progress.paused: mediaPlayer.playbackState === MediaPlayer.PausedState

      overlay.iconSource: mediaPlayer.playbackState === MediaPlayer.PlayingState ? "qrc:/play-32.png" :
                          mediaPlayer.playbackState === MediaPlayer.PausedState ? "qrc:/pause-32.png" : "qrc:/stop-32.png"
  }

Thumbnail Toolbar

Screenshot of the Quick Player thumbnail

The Windows Thumbnail Toolbar is used for providing basic music playback controls. These controls can be used to control the application without having to activate the application. The thumbnail toolbar buttons are bound to the music playback, and will automatically change whenever the state or attributes of the music playback changes.


  Win.ThumbnailToolBar {
      id: thumbbar

      Win.ThumbnailToolButton {
          tooltip: qsTr("Rewind")
          iconSource: "qrc:/backward-32.png"

          enabled: mediaPlayer.position > 0
          onClicked: mediaPlayer.seek(mediaPlayer.position - mediaPlayer.duration / 10)
      }

      Win.ThumbnailToolButton {
          tooltip: mediaPlayer.playbackState === MediaPlayer.PlayingState ? qsTr("Pause") : qsTr("Play")
          iconSource: mediaPlayer.playbackState === MediaPlayer.PlayingState ? "qrc:/pause-32.png" : "qrc:/play-32.png"

          enabled: mediaPlayer.hasAudio
          onClicked: mediaPlayer.playbackState === MediaPlayer.PlayingState ? mediaPlayer.pause() : mediaPlayer.play()
      }

      Win.ThumbnailToolButton {
          tooltip: qsTr("Fast forward")
          iconSource: "qrc:/forward-32.png"

          enabled: mediaPlayer.position < mediaPlayer.duration
          onClicked: mediaPlayer.seek(mediaPlayer.position + mediaPlayer.duration / 10)
      }
  }
