PathCurve QML Type

Defines a point on a Catmull-Rom curve. More...

• List of all members, including inherited members

Properties

• relativeX : real
• relativeY : real
• x : real
• y : real

Detailed Description

PathCurve provides an easy way to specify a curve passing directly through a set of points. Typically multiple PathCurves are used in a series, as the following example demonstrates:

  import QtQuick 2.0

  Canvas {
      width: 400; height: 200
      contextType: "2d"

      Path {
          id: myPath
          startX: 0; startY: 100

          PathCurve { x: 75; y: 75 }
          PathCurve { x: 200; y: 150 }
          PathCurve { x: 325; y: 25 }
          PathCurve { x: 400; y: 100 }
      }

      onPaint: {
          context.strokeStyle = Qt.rgba(.4,.6,.8);
          context.path = myPath;
          context.stroke();
      }
  }

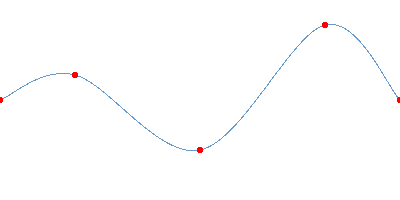

This example produces the following path (with the starting point and PathCurve points highlighted in red):

See also Path, PathLine, PathQuad, PathCubic, PathArc, and PathSvg.

Property Documentation
