GaugeStyle QML Type

Provides custom styling for Gauge. More...

Import Statement: import QtQuick.Controls.Styles 1.4
Since: Qt 5.5

Properties

Detailed Description

You can create a custom gauge by replacing the following delegates:

Below, you'll find an example of how to create a temperature gauge that changes color as its value increases:


  import QtQuick 2.2
  import QtQuick.Controls 1.4
  import QtQuick.Controls.Styles 1.4
  import QtQuick.Extras 1.4

  Rectangle {
      width: 80
      height: 200

      Timer {
          running: true
          repeat: true
          interval: 2000
          onTriggered: gauge.value = gauge.value == gauge.maximumValue ? 5 : gauge.maximumValue
      }

      Gauge {
          id: gauge
          anchors.fill: parent
          anchors.margins: 10

          value: 5
          Behavior on value {
              NumberAnimation {
                  duration: 1000
              }
          }

          style: GaugeStyle {
              valueBar: Rectangle {
                  implicitWidth: 16
                  color: Qt.rgba(gauge.value / gauge.maximumValue, 0, 1 - gauge.value / gauge.maximumValue, 1)
              }
          }
      }
  }

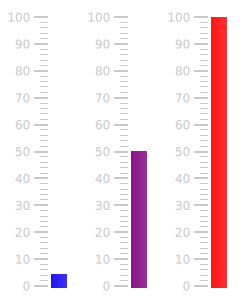

The gauge displaying values at various points during the animation.

See also Styling Gauge.

Property Documentation

background : Component

The background of the gauge, displayed behind the valueBar.

By default, no background is defined.


[read-only] control : Gauge

The Gauge that this style is attached to.


foreground : Component

The bar that represents the foreground of the gauge.

This component is drawn above every other component.


minorTickmark : Component

Each minor tickmark displayed by the gauge.

To set the size of the minor tickmarks, specify an implicitWidth and implicitHeight.

For layouting reasons, each minor tickmark should have the same implicitHeight. If different heights are needed for individual tickmarks, specify those heights in a child item of the component.

In the example below, we decrease the width of the minor tickmarks:


  minorTickmark: Item {
      implicitWidth: 8
      implicitHeight: 1

      Rectangle {
          color: "#cccccc"
          anchors.fill: parent
          anchors.leftMargin: 2
          anchors.rightMargin: 4
      }
  }

Gauge minorTickmark example

Each instance of this component has access to the following property:

readonly property int styleData.indexThe index of this minor tickmark.
readonly property real styleData.valueThe value that this minor tickmark represents.
readonly property real styleData.valuePositionThe value that this minor tickmark represents as a position in pixels, with 0 being at the bottom of the gauge.

See also tickmark.


tickmark : Component

Each tickmark displayed by the gauge.

To set the size of the tickmarks, specify an implicitWidth and implicitHeight.

The widest tickmark will determine the space set aside for all tickmarks. For this reason, the implicitWidth of each tickmark should be greater than or equal to that of each minor tickmark. If you need minor tickmarks to have greater widths than the major tickmarks, set the larger width in a child item of the minorTickmark component.

For layouting reasons, each tickmark should have the same implicitHeight. If different heights are needed for individual tickmarks, specify those heights in a child item of the component.

In the example below, we decrease the height of the tickmarks:


  tickmark: Item {
      implicitWidth: 18
      implicitHeight: 1

      Rectangle {
          color: "#c8c8c8"
          anchors.fill: parent
          anchors.leftMargin: 3
          anchors.rightMargin: 3
      }
  }

Gauge tickmark example

Each instance of this component has access to the following properties:

readonly property int styleData.indexThe index of this tickmark.
readonly property real styleData.valueThe value that this tickmark represents.
readonly property real styleData.valuePositionThe value that this tickmark represents as a position in pixels, with 0 being at the bottom of the gauge.

See also minorTickmark.


tickmarkLabel : Component

This defines the text of each tickmark label on the gauge.

Each instance of this component has access to the following properties:

readonly property int styleData.indexThe index of this label.
readonly property real styleData.valueThe value that this label represents.

valueBar : Component

The bar that represents the value of the gauge.

To height of the value bar is automatically resized according to value, and does not need to be specified.

When a custom valueBar is defined, its implicitWidth property must be set.


[read-only] valuePosition : real

This property holds the value displayed by the gauge as a position in pixels.

It is useful for custom styling.
