Customizing Qt Quick Controls 2

Qt Quick Controls 2 consist of a hierarchy (tree) of items. In order to provide a custom look and feel, the default QML implementation of each item can be replaced with a custom one.

Customizing a Control

Sometimes you'll want to create a "one-off" look for a specific part of your UI, and use a complete style everywhere else. Perhaps you're happy with the style you're using, but there's a certain button that has some special significance.

The first way to create this button is to simply define it in-place, wherever it is needed. For example, perhaps you're not satisfied with the default style's Button having square corners. To make them rounded, you can override the background item and set the radius property of Rectangle:


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  ApplicationWindow {
      width: 400
      height: 400
      visible: true

      Button {
          id: button
          text: "A Special Button"
          background: Rectangle {
              implicitWidth: 100
              implicitHeight: 40
              color: button.down ? "#d6d6d6" : "#f6f6f6"
              border.color: "#26282a"
              border.width: 1
              radius: 4
          }
      }
  }

The second way to create the button is good if you plan to use your rounded button in several places. It involves moving the code into its own QML file within your project.

For this approach, we'll copy the background code from the default style's Button.qml. This file can be found in the following path in your Qt installation:

$QTDIR/qml/QtQuick/Controls.2/Button.qml

After doing that, we'll simply add the following line:


  radius: 4

To avoid confusion with the controls in the module itself, we'll call the file MyButton.qml. To use the control in your application, refer to it by its filename:


  import QtQuick.Controls 2.1

  ApplicationWindow {
      MyButton {
          text: qsTr("A Special Button")
      }
  }

The third way to create the button is a bit more structured, both in terms of where the file sits in the file system and how it is used in QML. First, copy an existing file as you did above, but this time, put it into a subfolder in your project named (for example) controls. To use the control, first import the folder into a namespace:


  import QtQuick.Controls 2.1
  import "controls" as MyControls

  ApplicationWindow {
      MyControls.Button {
          text: qsTr("A Special Button")
      }
  }

As you now have the MyControls namespace, you can name the controls after their actual counterparts in the Qt Quick Controls 2 module. You can repeat this process for any control that you wish to add.

An added benefit of these three methods is that it's not necessary to implement the template from scratch.

Creating a Custom Style

There are several ways to go about creating your own styles. Below, we'll explain the various approaches.

Definition of a Style

In Qt Quick Controls 2, a style is essentially an interchangeable set of QML files within a single directory. There are three requirements for a style to be usable:

At least one QML file whose name matches a control (for example, Button.qml) must exist.
Each QML file must contain the relevant type from the QtQuick.Templates import as the root item. For example, Button.qml must contain a Button template as its root item.
If we instead used the corresponding type from the QtQuick.Controls import as we did in the previous section, it would not work: the control we were defining would try to derive from itself.
The files must be in a directory in the filesystem or in the resource system.
For example, these are all valid paths to a style:
- ./myapp -style /home/absolute/path/to/my/style
- ./myapp -style :/mystyle
- ./myapp -style relative/path/to/my/style
- ./myapp -style MyStyle
The third and fourth paths will be looked up within the QML engine's import path list. This is the same as what happens when you pass Material as the style, for example.

By default, the styling system uses the Default style as a fallback for controls that aren't implemented. To customize or extend any other built-in style, it is possible to specify a different fallback style using QQuickStyle.

What this means is that you can implement as many controls as you like for your custom style, and place them almost anywhere. It also allows users to create their own styles for your application.

Previewing Custom Styles in Qt Quick Designer

Using the approach above, it is possible to preview a custom style in Qt Quick Designer. In order to do so, ensure that the project has a qtquickcontrols2.conf file, and that the following entry exists:


  [Controls]
  Style=MyStyle

For more information, take a look at the Flat Style example.

Style-specific C++ Extensions

Sometimes you may need to use C++ to extend your custom style. There are two ways to expose such types to QML:

If the style that uses the type is the only style used by an application, it's enough to register it with the QML engine via qmlRegisterType():
```
  qmlRegisterType<ACoolCppItem>("MyApp", 1, 0, "ACoolItem");
```
See Using C++ Data From QML for more information about this.
If the style that uses the type is one of many styles used by an application, it may be better to only register it when necessary. This is the point at which it would make sense to implement your own QML plugin.
Using a plugin as part of your style is not that much different from using a set of QML files. The only difference is that the plugin and its qmldir file must be present in the same directory as the QML files.

Attached properties

It is common for a style to have certain properties or attributes that apply to all controls. Attached properties are a great way of extending an item in QML without having to modify any existing C++ belonging to that item. For example, both the Material and Universal styles have an attached theme property that controls whether an item and its children will be rendered in a light or dark theme.

As an example, let's add an attached property that controls elevation. Our style will illustrate the elevation with a drop shadow; the higher the elevation, the larger the shadow.

The first step is to create a new Qt Quick Controls 2 application in Qt Creator. After that, we add a C++ type that stores the elevation. Since the type will be used for every control supported by our style, and because we may wish to add other attached properties later on, we'll call it MyStyle. Here is MyStyle.h:


  #ifndef MYSTYLE_H
  #define MYSTYLE_H

  #include <QObject>
  #include <QtQml>

  class MyStyle : public QObject
  {
      Q_OBJECT
      Q_PROPERTY(int elevation READ elevation WRITE setElevation NOTIFY elevationChanged)

  public:
      explicit MyStyle(QObject *parent = nullptr);

      static MyStyle *qmlAttachedProperties(QObject *object);

      int elevation() const;
      void setElevation(int elevation);

  signals:
      void elevationChanged();

  private:
      int m_elevation;
  };

  QML_DECLARE_TYPEINFO(MyStyle, QML_HAS_ATTACHED_PROPERTIES)

  #endif // MYSTYLE_H

MyStyle.cpp:


  #include "mystyle.h"

  MyStyle::MyStyle(QObject *parent) :
      QObject(parent),
      m_elevation(0)
  {
  }

  MyStyle *MyStyle::qmlAttachedProperties(QObject *object)
  {
      return new MyStyle(object);
  }

  int MyStyle::elevation() const
  {
      return m_elevation;
  }

  void MyStyle::setElevation(int elevation)
  {
      if (elevation == m_elevation)
          return;

      m_elevation = elevation;
      emit elevationChanged();
  }

The MyStyle type is special in the sense that it shouldn't be instantiated, but rather used for its attached properties. For that reason, we register it in the following manner in main.cpp:


  #include <QGuiApplication>
  #include <QQmlApplicationEngine>

  #include "mystyle.h"

  int main(int argc, char *argv[])
  {
      QCoreApplication::setAttribute(Qt::AA_EnableHighDpiScaling);
      QGuiApplication app(argc, argv);

      qmlRegisterUncreatableType<MyStyle>("MyStyle", 1, 0, "MyStyle", "MyStyle is an attached property");

      QQmlApplicationEngine engine;
      engine.load(QUrl(QLatin1String("qrc:/main.qml")));

      return app.exec();
  }

We then copy Button.qml from the Default style in $QTDIR/qml/QtQuick/Controls.2/ into a new myproject folder in our project directory. Add the newly copied Button.qml to qml.qrc, which is the resource file that contains our QML files.

Next, we add a drop shadow to the background delegate of the Button:


  // ...
  import QtGraphicalEffects 1.0
  import MyStyle 1.0
  // ...

  background: Rectangle {
      // ...

      layer.enabled: control.enabled && control.MyStyle.elevation > 0
      layer.effect: DropShadow {
          verticalOffset: 1
          color: control.visualFocus ? "#330066ff" : "#aaaaaa"
          samples: control.MyStyle.elevation
          spread: 0.5
      }
  }

Note that we:

Don't bother using the drop shadow when the elevation is 0
Change the shadow's color depending on whether or not the button has focus
Make the size of the shadow depend on the elevation

To try out the attached property, we create a Row with two Buttons in main.qml:


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  import MyStyle 1.0

  ApplicationWindow {
      id: window
      width: 400
      height: 400
      visible: true

      Row {
          spacing: 20
          anchors.centerIn: parent

          Button {
              text: "Button 1"
          }
          Button {
              text: "Button 2"
              MyStyle.elevation: 10
          }
      }
  }

One button has no elevation, and the other has an elevation of 10.

With that in place, we can run our example. To tell the application to use our new style, we pass -style :/mystyle as an application argument, but there are many ways to specify the style to use.

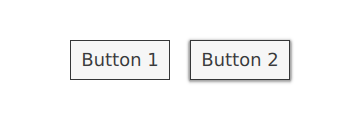

The end result:

Note that the import MyStyle 1.0 statement is only necessary because we are using the attached property belonging to MyStyle. Both buttons will use our custom style, even if we were to remove the import.

Customization Reference

The following snippets present examples where the default style's controls have been customized using the same approach as the Customizing a Control section. The code can be used as a starting point to implement a custom look and feel.

Customizing ApplicationWindow

ApplicationWindow consists of one visual item: background. It is also possible to customize the modal and modeless items.


  import QtQuick 2.7
  import QtQuick.Controls 2.0

  ApplicationWindow {
      visible: true

      background: Rectangle {
          gradient: Gradient {
              GradientStop { position: 0; color: "#ffffff" }
              GradientStop { position: 1; color: "#c1bbf9" }
          }
      }

      overlay.modal: Rectangle {
          color: "#8f28282a"
      }

      overlay.modeless: Rectangle {
          color: "#2f28282a"
      }
  }

Customizing BusyIndicator

BusyIndicator consists of two visual items: background and contentItem.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  BusyIndicator {
      id: control

      contentItem: Item {
          implicitWidth: 64
          implicitHeight: 64

          Item {
              id: item
              x: parent.width / 2 - 32
              y: parent.height / 2 - 32
              width: 64
              height: 64
              opacity: control.running ? 1 : 0

              Behavior on opacity {
                  OpacityAnimator {
                      duration: 250
                  }
              }

              RotationAnimator {
                  target: item
                  running: control.visible && control.running
                  from: 0
                  to: 360
                  loops: Animation.Infinite
                  duration: 1250
              }

              Repeater {
                  id: repeater
                  model: 6

                  Rectangle {
                      x: item.width / 2 - width / 2
                      y: item.height / 2 - height / 2
                      implicitWidth: 10
                      implicitHeight: 10
                      radius: 5
                      color: "#21be2b"
                      transform: [
                          Translate {
                              y: -Math.min(item.width, item.height) * 0.5 + 5
                          },
                          Rotation {
                              angle: index / repeater.count * 360
                              origin.x: 5
                              origin.y: 5
                          }
                      ]
                  }
              }
          }
      }
  }

Customizing Button

Button consists of two visual items: background and content item.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  Button {
      id: control
      text: qsTr("Button")

      contentItem: Text {
          text: control.text
          font: control.font
          opacity: enabled ? 1.0 : 0.3
          color: control.down ? "#17a81a" : "#21be2b"
          horizontalAlignment: Text.AlignHCenter
          verticalAlignment: Text.AlignVCenter
          elide: Text.ElideRight
      }

      background: Rectangle {
          implicitWidth: 100
          implicitHeight: 40
          opacity: enabled ? 1 : 0.3
          border.color: control.down ? "#17a81a" : "#21be2b"
          border.width: 1
          radius: 2
      }
  }

Customizing CheckBox

CheckBox consists of three visual items: background, contentItem and indicator.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  CheckBox {
      id: control
      text: qsTr("CheckBox")
      checked: true

      indicator: Rectangle {
          implicitWidth: 26
          implicitHeight: 26
          x: control.leftPadding
          y: parent.height / 2 - height / 2
          radius: 3
          border.color: control.down ? "#17a81a" : "#21be2b"

          Rectangle {
              width: 14
              height: 14
              x: 6
              y: 6
              radius: 2
              color: control.down ? "#17a81a" : "#21be2b"
              visible: control.checked
          }
      }

      contentItem: Text {
          text: control.text
          font: control.font
          opacity: enabled ? 1.0 : 0.3
          color: control.down ? "#17a81a" : "#21be2b"
          verticalAlignment: Text.AlignVCenter
          leftPadding: control.indicator.width + control.spacing
      }
  }

Customizing CheckDelegate

CheckDelegate consists of three visual items: background, contentItem and indicator.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  CheckDelegate {
      id: control
      text: qsTr("CheckDelegate")
      checked: true

      contentItem: Text {
          rightPadding: control.indicator.width + control.spacing
          text: control.text
          font: control.font
          opacity: enabled ? 1.0 : 0.3
          color: control.down ? "#17a81a" : "#21be2b"
          elide: Text.ElideRight
          verticalAlignment: Text.AlignVCenter
      }

      indicator: Rectangle {
          implicitWidth: 26
          implicitHeight: 26
          x: control.width - width - control.rightPadding
          y: control.topPadding + control.availableHeight / 2 - height / 2
          radius: 3
          color: "transparent"
          border.color: control.down ? "#17a81a" : "#21be2b"

          Rectangle {
              width: 14
              height: 14
              x: 6
              y: 6
              radius: 2
              color: control.down ? "#17a81a" : "#21be2b"
              visible: control.checked
          }
      }

      background: Rectangle {
          implicitWidth: 100
          implicitHeight: 40
          visible: control.down || control.highlighted
          color: control.down ? "#bdbebf" : "#eeeeee"
      }
  }

Customizing ComboBox

ComboBox consists of background, content item, popup, indicator, and delegate.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  ComboBox {
      id: control
      model: ["First", "Second", "Third"]

      delegate: ItemDelegate {
          width: control.width
          contentItem: Text {
              text: modelData
              color: "#21be2b"
              font: control.font
              elide: Text.ElideRight
              verticalAlignment: Text.AlignVCenter
          }
          highlighted: control.highlightedIndex === index
      }

      indicator: Canvas {
          id: canvas
          x: control.width - width - control.rightPadding
          y: control.topPadding + (control.availableHeight - height) / 2
          width: 12
          height: 8
          contextType: "2d"

          Connections {
              target: control
              onPressedChanged: canvas.requestPaint()
          }

          onPaint: {
              context.reset();
              context.moveTo(0, 0);
              context.lineTo(width, 0);
              context.lineTo(width / 2, height);
              context.closePath();
              context.fillStyle = control.pressed ? "#17a81a" : "#21be2b";
              context.fill();
          }
      }

      contentItem: Text {
          leftPadding: 0
          rightPadding: control.indicator.width + control.spacing

          text: control.displayText
          font: control.font
          color: control.pressed ? "#17a81a" : "#21be2b"
          verticalAlignment: Text.AlignVCenter
          elide: Text.ElideRight
      }

      background: Rectangle {
          implicitWidth: 120
          implicitHeight: 40
          border.color: control.pressed ? "#17a81a" : "#21be2b"
          border.width: control.visualFocus ? 2 : 1
          radius: 2
      }

      popup: Popup {
          y: control.height - 1
          width: control.width
          implicitHeight: contentItem.implicitHeight
          padding: 1

          contentItem: ListView {
              clip: true
              implicitHeight: contentHeight
              model: control.popup.visible ? control.delegateModel : null
              currentIndex: control.highlightedIndex

              ScrollIndicator.vertical: ScrollIndicator { }
          }

          background: Rectangle {
              border.color: "#21be2b"
              radius: 2
          }
      }
  }

Customizing DelayButton

DelayButton consists of two visual items: background and content item.


  import QtQuick 2.6
  import QtQuick.Controls 2.2

  DelayButton {
      id: control
      checked: true
      text: qsTr("Delay\nButton")

      contentItem: Text {
          text: control.text
          font: control.font
          opacity: enabled ? 1.0 : 0.3
          color: "white"
          horizontalAlignment: Text.AlignHCenter
          verticalAlignment: Text.AlignVCenter
          elide: Text.ElideRight
      }

      background: Rectangle {
          implicitWidth: 100
          implicitHeight: 100
          opacity: enabled ? 1 : 0.3
          color: control.down ? "#17a81a" : "#21be2b"
          radius: size / 2

          readonly property real size: Math.min(control.width, control.height)
          width: size
          height: size
          anchors.centerIn: parent

          Canvas {
              id: canvas
              anchors.fill: parent

              Connections {
                  target: control
                  onProgressChanged: canvas.requestPaint()
              }

              onPaint: {
                  var ctx = getContext("2d")
                  ctx.clearRect(0, 0, width, height)
                  ctx.strokeStyle = "white"
                  ctx.lineWidth = parent.size / 20
                  ctx.beginPath()
                  var startAngle = Math.PI / 5 * 3
                  var endAngle = startAngle + control.progress * Math.PI / 5 * 9
                  ctx.arc(width / 2, height / 2, width / 2 - ctx.lineWidth / 2 - 2, startAngle, endAngle)
                  ctx.stroke()
              }
          }
      }
  }

Customizing Dial

Dial consists of two visual items: background and handle.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  Dial {
      id: control
      background: Rectangle {
          x: control.width / 2 - width / 2
          y: control.height / 2 - height / 2
          width: Math.max(64, Math.min(control.width, control.height))
          height: width
          color: "transparent"
          radius: width / 2
          border.color: control.pressed ? "#17a81a" : "#21be2b"
          opacity: control.enabled ? 1 : 0.3
      }

      handle: Rectangle {
          id: handleItem
          x: control.background.x + control.background.width / 2 - width / 2
          y: control.background.y + control.background.height / 2 - height / 2
          width: 16
          height: 16
          color: control.pressed ? "#17a81a" : "#21be2b"
          radius: 8
          antialiasing: true
          opacity: control.enabled ? 1 : 0.3
          transform: [
              Translate {
                  y: -Math.min(control.background.width, control.background.height) * 0.4 + handleItem.height / 2
              },
              Rotation {
                  angle: control.angle
                  origin.x: handleItem.width / 2
                  origin.y: handleItem.height / 2
              }
          ]
      }
  }

Customizing Drawer

Drawer can have a visual background item.


  background: Rectangle {
      Rectangle {
          x: parent.width - 1
          width: 1
          height: parent.height
          color: "#21be2b"
      }
  }

Customizing Frame

Frame consists of one visual item: background.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  Frame {
      background: Rectangle {
          color: "transparent"
          border.color: "#21be2b"
          radius: 2
      }

      Label {
          text: qsTr("Content goes here!")
      }
  }

Customizing GroupBox

GroupBox consists of two visual items: background and label.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  GroupBox {
      id: control
      title: qsTr("GroupBox")

      background: Rectangle {
          y: control.topPadding - control.bottomPadding
          width: parent.width
          height: parent.height - control.topPadding + control.bottomPadding
          color: "transparent"
          border.color: "#21be2b"
          radius: 2
      }

      label: Label {
          x: control.leftPadding
          width: control.availableWidth
          text: control.title
          color: "#21be2b"
          elide: Text.ElideRight
      }

      Label {
          text: qsTr("Content goes here!")
      }
  }

Customizing ItemDelegate

ItemDelegate consists of two visual items: background and content item.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  ItemDelegate {
      id: control
      text: qsTr("ItemDelegate")

      contentItem: Text {
          rightPadding: control.spacing
          text: control.text
          font: control.font
          color: control.enabled ? (control.down ? "#17a81a" : "#21be2b") : "#bdbebf"
          elide: Text.ElideRight
          verticalAlignment: Text.AlignVCenter
      }

      background: Rectangle {
          implicitWidth: 100
          implicitHeight: 40
          opacity: enabled ? 1 : 0.3
          color: control.down ? "#dddedf" : "#eeeeee"

          Rectangle {
              width: parent.width
              height: 1
              color: control.down ? "#17a81a" : "#21be2b"
              anchors.bottom: parent.bottom
          }
      }
  }

Customizing Label

Label can have a visual background item.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  Label {
      text: qsTr("Label")
      color: "#21be2b"
  }

Customizing Menu

Menu consists of a visual background item.
MenuItem consists of four visual items: background, content item, indicator, and arrow.
MenuSeparator consists of a visual background and content item.


  import QtQuick 2.10
  import QtQuick.Controls 2.3

  Menu {
      id: menu

      Action { text: qsTr("Tool Bar"); checkable: true }
      Action { text: qsTr("Side Bar"); checkable: true; checked: true }
      Action { text: qsTr("Status Bar"); checkable: true; checked: true }

      MenuSeparator {
          contentItem: Rectangle {
              implicitWidth: 200
              implicitHeight: 1
              color: "#21be2b"
          }
      }

      Menu {
          title: qsTr("Advanced")
          // ...
      }

      topPadding: 2
      bottomPadding: 2

      delegate: MenuItem {
          id: menuItem
          implicitWidth: 200
          implicitHeight: 40

          arrow: Canvas {
              x: parent.width - width
              implicitWidth: 40
              implicitHeight: 40
              visible: menuItem.subMenu
              onPaint: {
                  var ctx = getContext("2d")
                  ctx.fillStyle = menuItem.highlighted ? "#ffffff" : "#21be2b"
                  ctx.moveTo(15, 15)
                  ctx.lineTo(width - 15, height / 2)
                  ctx.lineTo(15, height - 15)
                  ctx.closePath()
                  ctx.fill()
              }
          }

          indicator: Item {
              implicitWidth: 40
              implicitHeight: 40
              Rectangle {
                  width: 26
                  height: 26
                  anchors.centerIn: parent
                  visible: menuItem.checkable
                  border.color: "#21be2b"
                  radius: 3
                  Rectangle {
                      width: 14
                      height: 14
                      anchors.centerIn: parent
                      visible: menuItem.checked
                      color: "#21be2b"
                      radius: 2
                  }
              }
          }

          contentItem: Text {
              leftPadding: menuItem.indicator.width
              rightPadding: menuItem.arrow.width
              text: menuItem.text
              font: menuItem.font
              opacity: enabled ? 1.0 : 0.3
              color: menuItem.highlighted ? "#ffffff" : "#21be2b"
              horizontalAlignment: Text.AlignLeft
              verticalAlignment: Text.AlignVCenter
              elide: Text.ElideRight
          }

          background: Rectangle {
              implicitWidth: 200
              implicitHeight: 40
              opacity: enabled ? 1 : 0.3
              color: menuItem.highlighted ? "#21be2b" : "transparent"
          }
      }

      background: Rectangle {
          implicitWidth: 200
          implicitHeight: 40
          color: "#ffffff"
          border.color: "#21be2b"
          radius: 2
      }
  }

Customizing MenuBar

MenuBar can have a visual background item, and MenuBarItem consists of two visual items: background and content item.


  import QtQuick 2.10
  import QtQuick.Controls 2.3

  MenuBar {
      id: menuBar

      Menu { title: qsTr("File") }
      Menu { title: qsTr("Edit") }
      Menu { title: qsTr("View") }
      Menu { title: qsTr("Help") }

      delegate: MenuBarItem {
          id: menuBarItem

          contentItem: Text {
              text: menuBarItem.text
              font: menuBarItem.font
              opacity: enabled ? 1.0 : 0.3
              color: menuBarItem.highlighted ? "#ffffff" : "#21be2b"
              horizontalAlignment: Text.AlignLeft
              verticalAlignment: Text.AlignVCenter
              elide: Text.ElideRight
          }

          background: Rectangle {
              implicitWidth: 40
              implicitHeight: 40
              opacity: enabled ? 1 : 0.3
              color: menuBarItem.highlighted ? "#21be2b" : "transparent"
          }
      }

      background: Rectangle {
          implicitWidth: 40
          implicitHeight: 40
          color: "#ffffff"

          Rectangle {
              color: "#21be2b"
              width: parent.width
              height: 1
              anchors.bottom: parent.bottom
          }
      }
  }

Customizing PageIndicator

PageIndicator consists of a background, content item, and delegate.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  PageIndicator {
      id: control
      count: 5
      currentIndex: 2

      delegate: Rectangle {
          implicitWidth: 8
          implicitHeight: 8

          radius: width / 2
          color: "#21be2b"

          opacity: index === control.currentIndex ? 0.95 : pressed ? 0.7 : 0.45

          Behavior on opacity {
              OpacityAnimator {
                  duration: 100
              }
          }
      }
  }

Customizing Pane

Pane consists of a background.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  Pane {
      background: Rectangle {
          color: "#eeeeee"
      }

      Label {
          text: qsTr("Content goes here!")
      }
  }

Customizing Popup

Popup consists of a background and content item.


  import QtQuick 2.6
  import QtQuick.Controls 2.0

  Popup {
      id: popup
      background: Rectangle {
          implicitWidth: 200
          implicitHeight: 200
          border.color: "#444"
      }
      contentItem: Column {}
  }

Customizing ProgressBar

ProgressBar consists of two visual items: background and content item.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  ProgressBar {
      id: control
      value: 0.5
      padding: 2

      background: Rectangle {
          implicitWidth: 200
          implicitHeight: 6
          color: "#e6e6e6"
          radius: 3
      }

      contentItem: Item {
          implicitWidth: 200
          implicitHeight: 4

          Rectangle {
              width: control.visualPosition * parent.width
              height: parent.height
              radius: 2
              color: "#17a81a"
          }
      }
  }

Customizing RadioButton

RadioButton consists of three visual items: background, content item and indicator.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  RadioButton {
      id: control
      text: qsTr("RadioButton")
      checked: true

      indicator: Rectangle {
          implicitWidth: 26
          implicitHeight: 26
          x: control.leftPadding
          y: parent.height / 2 - height / 2
          radius: 13
          border.color: control.down ? "#17a81a" : "#21be2b"

          Rectangle {
              width: 14
              height: 14
              x: 6
              y: 6
              radius: 7
              color: control.down ? "#17a81a" : "#21be2b"
              visible: control.checked
          }
      }

      contentItem: Text {
          text: control.text
          font: control.font
          opacity: enabled ? 1.0 : 0.3
          color: control.down ? "#17a81a" : "#21be2b"
          verticalAlignment: Text.AlignVCenter
          leftPadding: control.indicator.width + control.spacing
      }
  }

Customizing RadioDelegate

RadioDelegate consists of three visual items: background, contentItem and indicator.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  RadioDelegate {
      id: control
      text: qsTr("RadioDelegate")
      checked: true

      contentItem: Text {
          rightPadding: control.indicator.width + control.spacing
          text: control.text
          font: control.font
          opacity: enabled ? 1.0 : 0.3
          color: control.down ? "#17a81a" : "#21be2b"
          elide: Text.ElideRight
          verticalAlignment: Text.AlignVCenter
      }

      indicator: Rectangle {
          implicitWidth: 26
          implicitHeight: 26
          x: control.width - width - control.rightPadding
          y: parent.height / 2 - height / 2
          radius: 13
          color: "transparent"
          border.color: control.down ? "#17a81a" : "#21be2b"

          Rectangle {
              width: 14
              height: 14
              x: 6
              y: 6
              radius: 7
              color: control.down ? "#17a81a" : "#21be2b"
              visible: control.checked
          }
      }

      background: Rectangle {
          implicitWidth: 100
          implicitHeight: 40
          visible: control.down || control.highlighted
          color: control.down ? "#bdbebf" : "#eeeeee"
      }
  }

Customizing RangeSlider

RangeSlider consists of three visual items: background, first.handle and second.handle.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  RangeSlider {
      id: control
      first.value: 0.25
      second.value: 0.75

      background: Rectangle {
          x: control.leftPadding
          y: control.topPadding + control.availableHeight / 2 - height / 2
          implicitWidth: 200
          implicitHeight: 4
          width: control.availableWidth
          height: implicitHeight
          radius: 2
          color: "#bdbebf"

          Rectangle {
              x: control.first.visualPosition * parent.width
              width: control.second.visualPosition * parent.width - x
              height: parent.height
              color: "#21be2b"
              radius: 2
          }
      }

      first.handle: Rectangle {
          x: control.leftPadding + first.visualPosition * (control.availableWidth - width)
          y: control.topPadding + control.availableHeight / 2 - height / 2
          implicitWidth: 26
          implicitHeight: 26
          radius: 13
          color: first.pressed ? "#f0f0f0" : "#f6f6f6"
          border.color: "#bdbebf"
      }

      second.handle: Rectangle {
          x: control.leftPadding + second.visualPosition * (control.availableWidth - width)
          y: control.topPadding + control.availableHeight / 2 - height / 2
          implicitWidth: 26
          implicitHeight: 26
          radius: 13
          color: second.pressed ? "#f0f0f0" : "#f6f6f6"
          border.color: "#bdbebf"
      }
  }

Customizing RoundButton

RoundButton can be customized in the same manner as Button.

Customizing ScrollBar

ScrollBar consists of two visual items: background and content item.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  ScrollBar {
      id: control
      size: 0.3
      position: 0.2
      active: true
      orientation: Qt.Vertical

      contentItem: Rectangle {
          implicitWidth: 6
          implicitHeight: 100
          radius: width / 2
          color: control.pressed ? "#81e889" : "#c2f4c6"
      }
  }

Customizing ScrollIndicator

ScrollIndicator consists of two visual items: background and content item.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  ScrollIndicator {
      id: control
      size: 0.3
      position: 0.2
      active: true
      orientation: Qt.Vertical

      contentItem: Rectangle {
          implicitWidth: 2
          implicitHeight: 100
          color: "#c2f4c6"
      }
  }

Customizing ScrollView

ScrollView consists of a background item, and horizontal and vertical scroll bars.


  ScrollView {
      id: control

      width: 200
      height: 200
      focus: true

      Label {
          text: "ABC"
          font.pixelSize: 224
      }

      ScrollBar.vertical: ScrollBar {
          parent: control
          x: control.mirrored ? 0 : control.width - width
          y: control.topPadding
          height: control.availableHeight
          active: control.ScrollBar.horizontal.active
      }

      ScrollBar.horizontal: ScrollBar {
          parent: control
          x: control.leftPadding
          y: control.height - height
          width: control.availableWidth
          active: control.ScrollBar.vertical.active
      }

      background: Rectangle {
          border.color: control.activeFocus ? "#21be2b" : "#bdbebf"
      }
  }

Customizing Slider

Slider consists of two visual items: background, and handle.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  Slider {
      id: control
      value: 0.5

      background: Rectangle {
          x: control.leftPadding
          y: control.topPadding + control.availableHeight / 2 - height / 2
          implicitWidth: 200
          implicitHeight: 4
          width: control.availableWidth
          height: implicitHeight
          radius: 2
          color: "#bdbebf"

          Rectangle {
              width: control.visualPosition * parent.width
              height: parent.height
              color: "#21be2b"
              radius: 2
          }
      }

      handle: Rectangle {
          x: control.leftPadding + control.visualPosition * (control.availableWidth - width)
          y: control.topPadding + control.availableHeight / 2 - height / 2
          implicitWidth: 26
          implicitHeight: 26
          radius: 13
          color: control.pressed ? "#f0f0f0" : "#f6f6f6"
          border.color: "#bdbebf"
      }
  }

Customizing SpinBox

SpinBox consists of four visual items: background, contentItem, up indicator, and down indicator.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  SpinBox {
      id: control
      value: 50
      editable: true

      contentItem: TextInput {
          z: 2
          text: control.textFromValue(control.value, control.locale)

          font: control.font
          color: "#21be2b"
          selectionColor: "#21be2b"
          selectedTextColor: "#ffffff"
          horizontalAlignment: Qt.AlignHCenter
          verticalAlignment: Qt.AlignVCenter

          readOnly: !control.editable
          validator: control.validator
          inputMethodHints: Qt.ImhFormattedNumbersOnly
      }

      up.indicator: Rectangle {
          x: control.mirrored ? 0 : parent.width - width
          height: parent.height
          implicitWidth: 40
          implicitHeight: 40
          color: control.up.pressed ? "#e4e4e4" : "#f6f6f6"
          border.color: enabled ? "#21be2b" : "#bdbebf"

          Text {
              text: "+"
              font.pixelSize: control.font.pixelSize * 2
              color: "#21be2b"
              anchors.fill: parent
              fontSizeMode: Text.Fit
              horizontalAlignment: Text.AlignHCenter
              verticalAlignment: Text.AlignVCenter
          }
      }

      down.indicator: Rectangle {
          x: control.mirrored ? parent.width - width : 0
          height: parent.height
          implicitWidth: 40
          implicitHeight: 40
          color: control.down.pressed ? "#e4e4e4" : "#f6f6f6"
          border.color: enabled ? "#21be2b" : "#bdbebf"

          Text {
              text: "-"
              font.pixelSize: control.font.pixelSize * 2
              color: "#21be2b"
              anchors.fill: parent
              fontSizeMode: Text.Fit
              horizontalAlignment: Text.AlignHCenter
              verticalAlignment: Text.AlignVCenter
          }
      }

      background: Rectangle {
          implicitWidth: 140
          border.color: "#bdbebf"
      }
  }

Customizing StackView

StackView can have a visual background item, and it allows customizing the transitions that are used for push, pop, and replace operations.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  StackView {
      id: control

      popEnter: Transition {
          XAnimator {
              from: (control.mirrored ? -1 : 1) * -control.width
              to: 0
              duration: 400
              easing.type: Easing.OutCubic
          }
      }

      popExit: Transition {
          XAnimator {
              from: 0
              to: (control.mirrored ? -1 : 1) * control.width
              duration: 400
              easing.type: Easing.OutCubic
          }
      }
  }

Customizing SwipeDelegate

SwipeDelegate consists of six visual items: background, content item, indicator, swipe.left, swipe.right, and swipe.behind.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  SwipeDelegate {
      id: control
      text: qsTr("SwipeDelegate")

      Component {
          id: component

          Rectangle {
              color: SwipeDelegate.pressed ? "#333" : "#444"
              width: parent.width
              height: parent.height
              clip: true

              Label {
                  text: qsTr("Press me!")
                  color: "#21be2b"
                  anchors.centerIn: parent
              }
          }
      }

      swipe.left: component
      swipe.right: component

      contentItem: Text {
          text: control.text
          font: control.font
          color: control.enabled ? (control.down ? "#17a81a" : "#21be2b") : "#bdbebf"
          elide: Text.ElideRight
          verticalAlignment: Text.AlignVCenter

          Behavior on x {
              enabled: !control.down
              NumberAnimation {
                  easing.type: Easing.InOutCubic
                  duration: 400
              }
          }
      }
  }

Customizing SwipeView

SwipeView can have a visual background item. The navigation is implemented by the content item.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  SwipeView {
      id: control

      background: Rectangle {
          color: "#eeeeee"
      }
  }

Customizing Switch

Switch consists of three visual items: background, content item and indicator.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  Switch {
      id: control
      text: qsTr("Switch")

      indicator: Rectangle {
          implicitWidth: 48
          implicitHeight: 26
          x: control.leftPadding
          y: parent.height / 2 - height / 2
          radius: 13
          color: control.checked ? "#17a81a" : "#ffffff"
          border.color: control.checked ? "#17a81a" : "#cccccc"

          Rectangle {
              x: control.checked ? parent.width - width : 0
              width: 26
              height: 26
              radius: 13
              color: control.down ? "#cccccc" : "#ffffff"
              border.color: control.checked ? (control.down ? "#17a81a" : "#21be2b") : "#999999"
          }
      }

      contentItem: Text {
          text: control.text
          font: control.font
          opacity: enabled ? 1.0 : 0.3
          color: control.down ? "#17a81a" : "#21be2b"
          verticalAlignment: Text.AlignVCenter
          leftPadding: control.indicator.width + control.spacing
      }
  }

Customizing SwitchDelegate

SwitchDelegate consists of three visual items: background, contentItem and indicator.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  SwitchDelegate {
      id: control
      text: qsTr("SwitchDelegate")
      checked: true

      contentItem: Text {
          rightPadding: control.indicator.width + control.spacing
          text: control.text
          font: control.font
          opacity: enabled ? 1.0 : 0.3
          color: control.down ? "#17a81a" : "#21be2b"
          elide: Text.ElideRight
          verticalAlignment: Text.AlignVCenter
      }

      indicator: Rectangle {
          implicitWidth: 48
          implicitHeight: 26
          x: control.width - width - control.rightPadding
          y: parent.height / 2 - height / 2
          radius: 13
          color: control.checked ? "#17a81a" : "transparent"
          border.color: control.checked ? "#17a81a" : "#cccccc"

          Rectangle {
              x: control.checked ? parent.width - width : 0
              width: 26
              height: 26
              radius: 13
              color: control.down ? "#cccccc" : "#ffffff"
              border.color: control.checked ? (control.down ? "#17a81a" : "#21be2b") : "#999999"
          }
      }

      background: Rectangle {
          implicitWidth: 100
          implicitHeight: 40
          visible: control.down || control.highlighted
          color: control.down ? "#bdbebf" : "#eeeeee"
      }
  }

Customizing TabBar

TabBar consists of two visual items: background, and contentItem.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  TabBar {
      id: control

      background: Rectangle {
          color: "#eeeeee"
      }

      TabButton {
          text: qsTr("Home")
      }
      TabButton {
          text: qsTr("Discover")
      }
      TabButton {
          text: qsTr("Activity")
      }
  }

Customizing TabButton

TabButton can be customized in the same manner as Button.

Customizing TextArea

TextArea consists of a background item.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  TextArea {
      id: control
      placeholderText: qsTr("Enter description")

      background: Rectangle {
          implicitWidth: 200
          implicitHeight: 40
          border.color: control.enabled ? "#21be2b" : "transparent"
      }
  }

Customizing TextField

TextField consists of a background item.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  TextField {
      id: control
      placeholderText: qsTr("Enter description")

      background: Rectangle {
          implicitWidth: 200
          implicitHeight: 40
          color: control.enabled ? "transparent" : "#353637"
          border.color: control.enabled ? "#21be2b" : "transparent"
      }
  }

Customizing ToolBar

ToolBar consists of one visual item: background.


  ToolBar {
      id: control

      background: Rectangle {
          implicitHeight: 40
          color: "#eeeeee"

          Rectangle {
              width: parent.width
              height: 1
              anchors.bottom: parent.bottom
              color: "transparent"
              border.color: "#21be2b"
          }
      }

      RowLayout {
          anchors.fill: parent
          ToolButton {
              text: qsTr("Undo")
          }
          ToolButton {
              text: qsTr("Redo")
          }
      }
  }

Customizing ToolButton

ToolButton consists of two visual items: background and content item.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  ToolButton {
      id: control
      text: qsTr("ToolButton")
      width: 120

      contentItem: Text {
          text: control.text
          font: control.font
          opacity: enabled ? 1.0 : 0.3
          color: control.down ? "#17a81a" : "#21be2b"
          horizontalAlignment: Text.AlignHCenter
          verticalAlignment: Text.AlignVCenter
          elide: Text.ElideRight
      }

      background: Rectangle {
          implicitWidth: 40
          implicitHeight: 40
          color: Qt.darker("#33333333", control.enabled && (control.checked || control.highlighted) ? 1.5 : 1.0)
          opacity: enabled ? 1 : 0.3
          visible: control.down || (control.enabled && (control.checked || control.highlighted))
      }
  }

Customizing ToolSeparator

ToolSeparator consists of two visual items: background and content item.


  ToolBar {
      RowLayout {
          anchors.fill: parent

          ToolButton {
              text: qsTr("Action 1")
          }
          ToolButton {
              text: qsTr("Action 2")
          }

          ToolSeparator {
              padding: vertical ? 10 : 2
              topPadding: vertical ? 2 : 10
              bottomPadding: vertical ? 2 : 10

              contentItem: Rectangle {
                  implicitWidth: parent.vertical ? 1 : 24
                  implicitHeight: parent.vertical ? 24 : 1
                  color: "#c3c3c3"
              }
          }

          ToolButton {
              text: qsTr("Action 3")
          }
          ToolButton {
              text: qsTr("Action 4")
          }

          Item {
              Layout.fillWidth: true
          }
      }
  }

Customizing ToolTip

ToolTip consists of two visual items: background and content item.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  ToolTip {
      id: control
      text: qsTr("A descriptive tool tip of what the button does")

      contentItem: Text {
          text: control.text
          font: control.font
          color: "#21be2b"
      }

      background: Rectangle {
          border.color: "#21be2b"
      }
  }

Customizing Tumbler

Tumbler consists of three visual items: background, contentItem, and delegate.


  import QtQuick 2.6
  import QtQuick.Controls 2.1

  Tumbler {
      id: control
      model: 15

      background: Item {
          Rectangle {
              opacity: control.enabled ? 0.2 : 0.1
              border.color: "#000000"
              width: parent.width
              height: 1
              anchors.top: parent.top
          }

          Rectangle {
              opacity: control.enabled ? 0.2 : 0.1
              border.color: "#000000"
              width: parent.width
              height: 1
              anchors.bottom: parent.bottom
          }
      }

      delegate: Text {
          text: qsTr("Item %1").arg(modelData + 1)
          font: control.font
          horizontalAlignment: Text.AlignHCenter
          verticalAlignment: Text.AlignVCenter
          opacity: 1.0 - Math.abs(Tumbler.displacement) / (control.visibleItemCount / 2)
      }

      Rectangle {
          anchors.horizontalCenter: control.horizontalCenter
          y: control.height * 0.4
          width: 40
          height: 1
          color: "#21be2b"
      }

      Rectangle {
          anchors.horizontalCenter: control.horizontalCenter
          y: control.height * 0.6
          width: 40
          height: 1
          color: "#21be2b"
      }
  }

If you want to define your own contentItem, use either a ListView or PathView as the root item. For a wrapping Tumbler, use PathView:


  Tumbler {
      id: tumbler

      contentItem: PathView {
          id: pathView
          model: tumbler.model
          delegate: tumbler.delegate
          clip: true
          pathItemCount: tumbler.visibleItemCount + 1
          preferredHighlightBegin: 0.5
          preferredHighlightEnd: 0.5
          dragMargin: width / 2

          path: Path {
              startX: pathView.width / 2
              startY: -pathView.delegateHeight / 2
              PathLine {
                  x: pathView.width / 2
                  y: pathView.pathItemCount * pathView.delegateHeight - pathView.delegateHeight / 2
              }
          }

          property real delegateHeight: tumbler.availableHeight / tumbler.visibleItemCount
      }
  }

For a non-wrapping Tumbler, use ListView:


  Tumbler {
      id: tumbler

      contentItem: ListView {
          model: tumbler.model
          delegate: tumbler.delegate

          snapMode: ListView.SnapToItem
          highlightRangeMode: ListView.StrictlyEnforceRange
          preferredHighlightBegin: height / 2 - (height / tumbler.visibleItemCount / 2)
          preferredHighlightEnd: height / 2 + (height / tumbler.visibleItemCount / 2)
          clip: true
      }
  }

Contents

Customizing Qt Quick Controls 2

Customizing a Control

Creating a Custom Style

Definition of a Style

Previewing Custom Styles in Qt Quick Designer

Style-specific C++ Extensions

Attached properties

Customization Reference

Customizing ApplicationWindow

Customizing BusyIndicator

Customizing Button

Customizing CheckBox

Customizing CheckDelegate

Customizing ComboBox

Customizing DelayButton

Customizing Dial

Customizing Drawer

Customizing Frame

Customizing GroupBox

Customizing ItemDelegate

Customizing Label

Customizing Menu

Customizing MenuBar

Customizing PageIndicator

Customizing Pane

Customizing Popup

Customizing ProgressBar

Customizing RadioButton

Customizing RadioDelegate

Customizing RangeSlider

Customizing RoundButton

Customizing ScrollBar

Customizing ScrollIndicator

Customizing ScrollView

Customizing Slider

Customizing SpinBox

Customizing StackView

Customizing SwipeDelegate

Customizing SwipeView

Customizing Switch

Customizing SwitchDelegate

Customizing TabBar

Customizing TabButton

Customizing TextArea

Customizing TextField

Customizing ToolBar

Customizing ToolButton

Customizing ToolSeparator

Customizing ToolTip

Customizing Tumbler
