Drawer QML Type

Side panel that can be opened and closed using a swipe gesture. More...

Import Statement: import QtQuick.Controls 2.4
Since: Qt 5.7
Inherits:

Popup

Properties

Detailed Description

Drawer provides a swipe-based side panel, similar to those often used in touch interfaces to provide a central location for navigation.

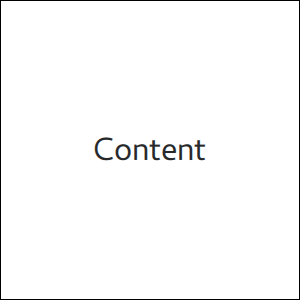

Drawer can be positioned at any of the four edges of the content item. The drawer above is positioned against the left edge of the window. The drawer is then opened by "dragging" it out from the left edge of the window.


  import QtQuick 2.7
  import QtQuick.Controls 2.0

  ApplicationWindow {
      id: window
      visible: true

      Drawer {
          id: drawer
          width: 0.66 * window.width
          height: window.height

          Label {
              text: "Content goes here!"
              anchors.centerIn: parent
          }
      }
  }

Drawer is a special type of popup that resides at one of the window edges. By default, Drawer re-parents itself to the window overlay, and therefore operates on window coordinates. It is also possible to manually set the parent to something else to make the drawer operate in a specific coordinate space.

Drawer can be configured to cover only part of its window edge. The following example illustrates how Drawer can be positioned to appear below a window header:


  import QtQuick 2.7
  import QtQuick.Controls 2.0

  ApplicationWindow {
      id: window
      visible: true

      header: ToolBar { }

      Drawer {
          y: header.height
          width: window.width * 0.6
          height: window.height - header.height
      }
  }

The position property determines how much of the drawer is visible, as a value between 0.0 and 1.0. It is not possible to set the x-coordinate (or horizontal margins) of a drawer at the left or right window edge, or the y-coordinate (or vertical margins) of a drawer at the top or bottom window edge.

In the image above, the application's contents are "pushed" across the screen. This is achieved by applying a translation to the contents:


  import QtQuick 2.7
  import QtQuick.Controls 2.1

  ApplicationWindow {
      id: window
      width: 200
      height: 228
      visible: true

      Drawer {
          id: drawer
          width: 0.66 * window.width
          height: window.height
      }

      Label {
          id: content

          text: "Aa"
          font.pixelSize: 96
          anchors.fill: parent
          verticalAlignment: Label.AlignVCenter
          horizontalAlignment: Label.AlignHCenter

          transform: Translate {
              x: drawer.position * content.width * 0.33
          }
      }
  }

If you would like the application's contents to stay where they are when the drawer is opened, don't apply a translation.

Drawer can be configured as a non-closable persistent side panel by making the Drawer non-modal and non-interactive. See the Side Panel example for more details.

Note: On some platforms, certain edges may be reserved for system gestures and therefore cannot be used with Drawer. For example, the top and bottom edges may be reserved for system notifications and control centers on Android and iOS.

See also SwipeView, Customizing Drawer, Navigation Controls, and Popup Controls.

Property Documentation

dragMargin : real

This property holds the distance from the screen edge within which drag actions will open the drawer. Setting the value to 0 or less prevents opening the drawer by dragging.

The default value is Qt.styleHints.startDragDistance.

See also interactive.


edge : enumeration

This property holds the edge of the window at which the drawer will open from. The acceptable values are:

ConstantDescription
Qt.TopEdgeThe top edge of the window.
Qt.LeftEdgeThe left edge of the window (default).
Qt.RightEdgeThe right edge of the window.
Qt.BottomEdgeThe bottom edge of the window.

interactive : bool

This property holds whether the drawer is interactive. A non-interactive drawer does not react to swipes.

The default value is true.

This QML property was introduced in QtQuick.Controls 2.2 (Qt 5.9).

See also dragMargin.


position : real

This property holds the position of the drawer relative to its final destination. That is, the position will be 0.0 when the drawer is fully closed, and 1.0 when fully open.
